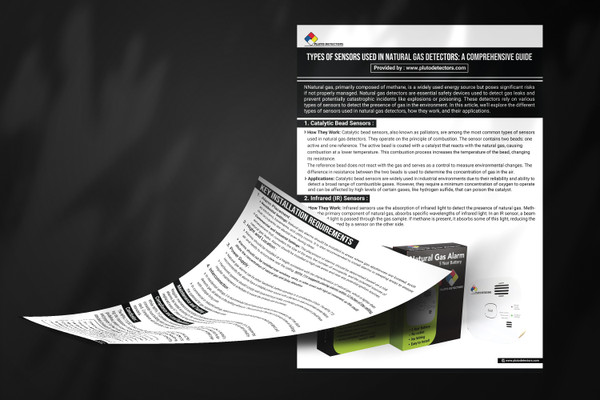

Types of Sensors Used in Natural Gas Detectors: A Comprehensive Guide
Natural gas, primarily composed of methane, is a widely used energy source but poses significant risks if not properly managed. Natural gas detectors are essential safety devices used to detect gas leaks and prevent potentially catastrophic incidents like explosions or poisoning. These detectors rely on various types of sensors to detect the presence of gas in the environment. In this article, we'll explore the different types of sensors used in natural gas detectors, how they work, and their applications.
- Catalytic Bead Sensors
How They Work: Catalytic bead sensors, also known as pellistors, are among the most common types of sensors used in natural gas detectors. They operate on the principle of combustion. The sensor contains two beads: one active and one reference. The active bead is coated with a catalyst that reacts with the natural gas, causing combustion at a lower temperature. This combustion process increases the temperature of the bead, changing its resistance.
The reference bead does not react with the gas and serves as a control to measure environmental changes. The difference in resistance between the two beads is used to determine the concentration of gas in the air.
Applications: Catalytic bead sensors are widely used in industrial environments due to their reliability and ability to detect a broad range of combustible gases. However, they require a minimum concentration of oxygen to operate and can be affected by high levels of certain gases, like hydrogen sulfide, that can poison the catalyst.
- Infrared (IR) Sensors
How They Work: Infrared sensors use the absorption of infrared light to detect the presence of natural gas. Methane, the primary component of natural gas, absorbs specific wavelengths of infrared light. In an IR sensor, a beam of infrared light is passed through the gas sample. If methane is present, it absorbs some of this light, reducing the intensity detected by a sensor on the other side.
By measuring the reduction in light intensity, the concentration of methane can be calculated. This method does not require oxygen and is not affected by poisons, making IR sensors particularly robust.
Applications: Infrared sensors are used in environments where catalytic bead sensors might fail, such as in areas with low oxygen levels or high concentrations of interfering gases. They are also favored in applications requiring long-term stability and low maintenance, such as in continuous monitoring systems.
- Semiconductor Sensors
How They Work: Semiconductor sensors, also known as metal oxide semiconductor (MOS) sensors, operate based on the change in conductivity of a semiconductor material when exposed to natural gas. The sensor surface is typically coated with a metal oxide, such as tin dioxide. When methane interacts with the sensor surface, it causes a change in the conductivity of the material.
This change in conductivity is measured and used to determine the concentration of gas in the air. Semiconductor sensors are sensitive to a wide range of gases and can detect very low concentrations.
Applications: Semiconductor sensors are often used in residential gas detectors due to their low cost and high sensitivity. They are also used in some industrial applications, although they can be prone to false alarms due to their sensitivity to humidity and temperature changes.
- Electrochemical Sensors
How They Work: Electrochemical sensors are typically used to detect toxic gases, but they can also be adapted for natural gas detection. These sensors consist of an electrolyte and electrodes. When natural gas comes into contact with the sensor, it undergoes a chemical reaction, producing an electrical current proportional to the gas concentration.
Electrochemical sensors are highly selective and can be designed to respond only to specific gases. They are also relatively low power, making them suitable for battery-powered detectors.
Applications: While less common in natural gas detectors, electrochemical sensors are used in applications where precise detection of specific gas components, such as methane, is required. They are often found in portable gas detectors used by safety inspectors and first responders.
- Ultrasonic Sensors
How They Work: Ultrasonic sensors detect natural gas leaks by listening for the sound of gas escaping under pressure. Unlike other sensors that detect the presence of gas itself, ultrasonic sensors are designed to pick up the ultrasonic sound waves generated by gas escaping from a leak.
These sensors are non-invasive and do not require direct contact with the gas. They can detect leaks in high-noise environments and are unaffected by wind or gas concentration.
Applications: Ultrasonic sensors are used in industrial settings where high-pressure gas systems are in use. They are particularly useful for detecting leaks in pipelines and other equipment where gas may escape through small cracks or fittings.
Conclusion
Natural gas detectors are critical for ensuring safety in both residential and industrial environments. The choice of sensor depends on the specific requirements of the application, including sensitivity, environmental conditions, and the presence of other gases. Catalytic bead, infrared, semiconductor, electrochemical, and ultrasonic sensors each offer unique advantages and are chosen based on the specific needs of the detection system.
Understanding the different types of sensors available can help in selecting the most appropriate natural gas detector for a given situation, ensuring that gas leaks are detected quickly and effectively, thereby preventing accidents and saving lives.
